Using Lobby Elements

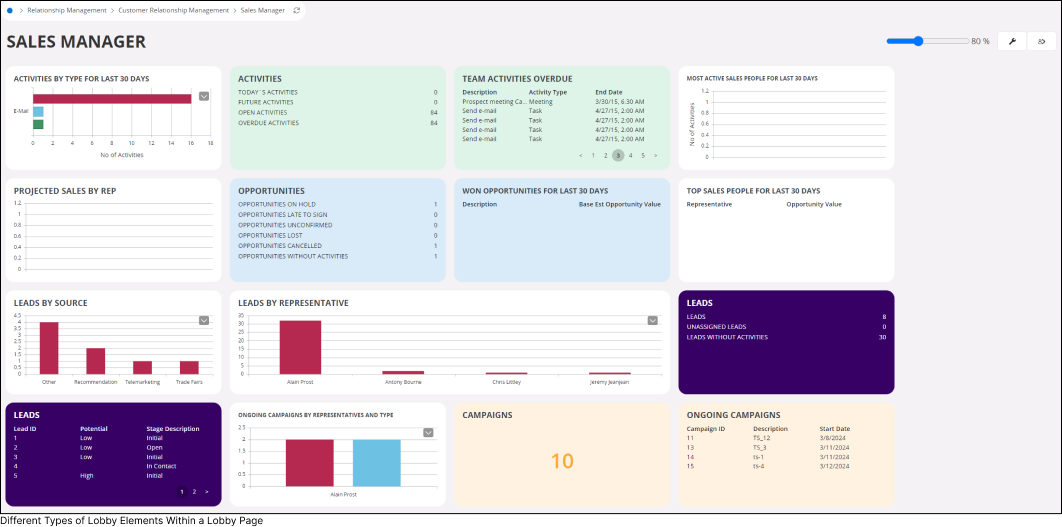

Lobby pages utilize Lobby Elements to present data/content, offering users a comprehensive understanding of relevant information. These elements display data in diverse formats, including counters, graphs, and lists. Additionally, they provide links for users to navigate to related pages within IFS Cloud or external websites not affiliated with Cloud.

Interact/ive Features of a Lobby Element

In IFS Cloud Web, you can interact with Lobby Elements, and the type of interaction you can have with an Element depends on the configurations set by application developers from the back end.

Below are some common interaction types:

1. Interactions Associated With Clicking

Clicking on a Lobby Element component or the entire Lobby Element will trigger two actions.

It can navigate you to another lobby, page, or link.
It can trigger a publisher.

However, if both configurations are set in the Lobby Element you are using, priority will be given to navigation actions over triggering a publisher.

2. Enlarge/ Collapse Lobby Element View

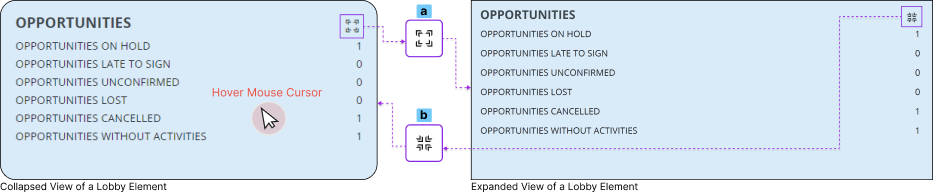

If you wish to view the element in full-screen mode, simply click on the Enlarge View(a) button that appears when you hover over the desired element.

Note: Counter elements do not display the Enlarge View(a) button when hovered over.

While in enlarge view mode, click on the Collapse View(b) button to return to the normal view of the Lobby Element.

3. Publisher & Subscriber Elements

Publisher Element

In a lobby page, you'll find unique elements referred to as Publishers and Subscribers. When you click on a component within a Publisher Element, it sends data related to your selection to other Elements that are subscribed to that Element. These Elements, which are subscribed to Publisher Elements, are called Subscriber Elements.

Once the Subscriber Element receives data from the Publisher Element, it displays content within the Element based on the received data. It's essential to understand that this functionality is specific to the particular lobby page where it is configured.

Subscriber Element

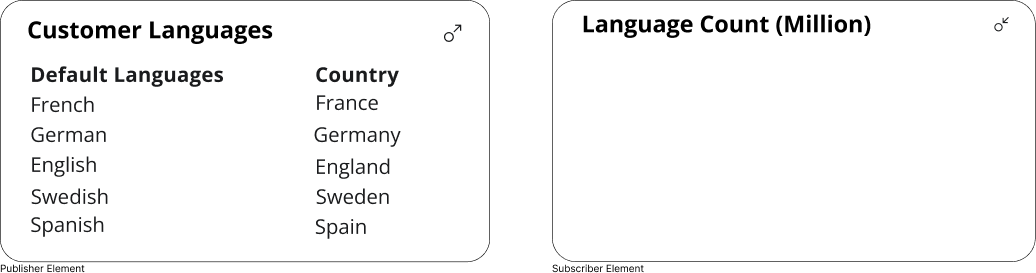

Example: The diagram below depicts two elements:

Customer Languages

Language Count

The Customer Languages Element is a list-type Publisher Element, while the Language Count Element is a bar chart-type Subscriber Element.

When you click on any country under the Country column in the Publisher Element, the Languages Count Subscriber Element displays the number of people who speaks each language shown in the Default Language column using a bar chart.

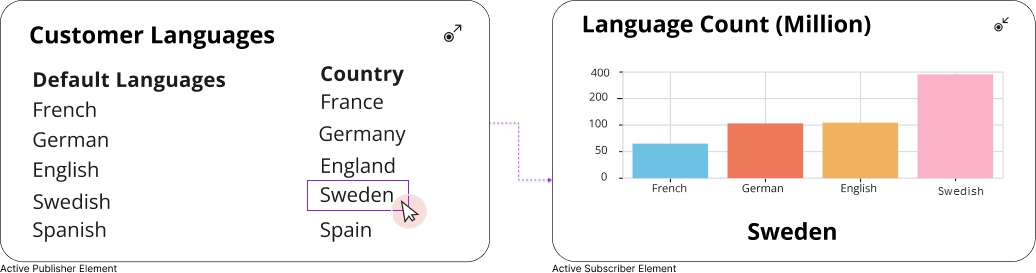

Once you made your selection, behavior of the Publisher and Subscriber icons will change to indicate that two elements are actively communicating with each other.

Active Publisher Element

Active Subscriber Element

Time Zone Support for Lobby Elements

If the underlying data source utilized to create the Lobby Element has Time Zone support enabled by the administrator, then the Lobby Element will facilitate time zone conversion for any date/time value within the element.

You can also utilize page parameters to showcase data within the lobby element based on a specific date-time value in a different timezone.

Displaying a Time Zone Badge Within a Lobby Element

If the underlying data source used to create the Lobby Element has Time Zone support enabled by the administrator, and if the lobby element displays date/time values from a timezone different than the current working timezone, a time zone badge will be displayed next to each date/time value that differs from the current working timezone.

Please Note: Administrators can also choose to display the time zone badge even when the date/time value is the same. This setting can be enabled from the Element Designer.

Keyboard Shortcuts for Lobby Elements

The table below provides shortcuts associated with Lobby Elements.

Shortcut Key	Description
	To get keyboard focus and move forward into lobby page toolbar and lobby elements.
	To get keyboard focus and move backwards into lobby page toolbar and lobby elements.
	To move focus through the records inside the list and linked list elements.
	To move focus through the pagination in list elements.
	To navigate to pages from counter, image/text, list and linked list elements.
